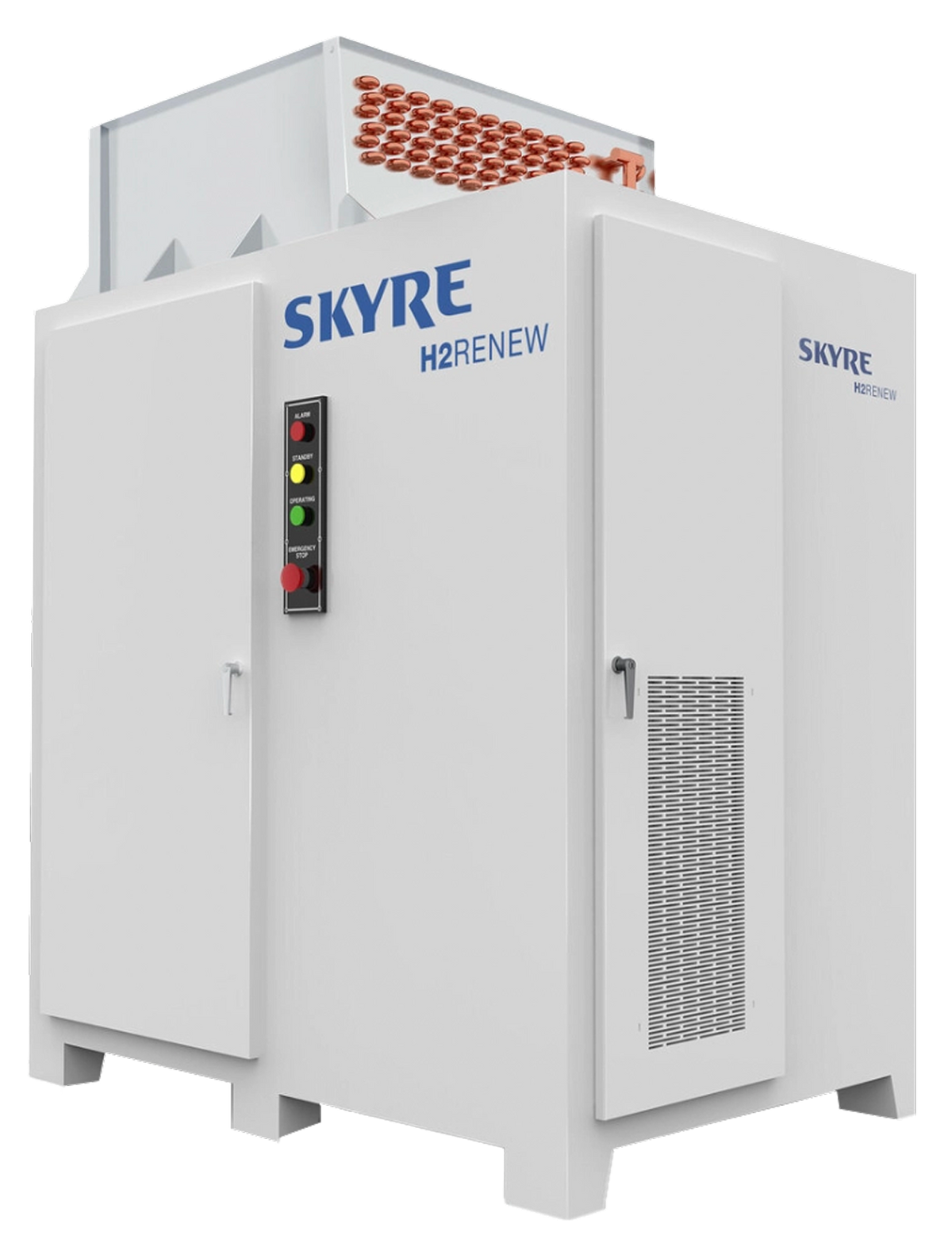

Skyre H2RENEW™ Hydrogen Reclaimer

Gaia

Skyre H2RENEW™ Hydrogen Reclaimer

At a critical moment in the energy transition, the Skyre H2RENEW™ Hydrogen Recovery System provides a stable, flexible, and sustainable source of hydrogen for a wide range of applications. We simplify complex hydrogen production processes into an integrated, plug-and-play system that not only reduces costs but also ensures safe and reliable use. Whether for industrial, medical, transportation, or research use, Skyre H2RENEW™ is your partner for a clean energy future.

Download product documentation

Leave your email to download the full technical specification sheet and application cases.

Your email will be stored on this device for a specified number of days, so you won’t need to enter it again for future downloads.

Smart Solutions

On-demand hydrogen production
Highlight 1

On-demand hydrogen production

Eliminate the complexities and risks of traditional hydrogen storage and transportation. H2RENEW™ produces hydrogen on-site in real time, ensuring you have a stable source of high-purity hydrogen at all times.

High purity output for multiple domains
Highlight 2

High purity output for multiple domains

The system delivers up to 99.999% hydrogen purity, perfect for precision electronics processes, medical testing, transportation energy, or research experiments.

Modular and flexible scaling
Highlight 3

Modular and flexible scaling

Adopting a modular design, you can flexibly expand from a single application to a large production line, allowing you to adjust production capacity at any time according to your needs, without being constrained by future development.

Significant economic benefits
Highlight 4

Significant economic benefits

Eliminate the need for high-pressure storage and transportation, drastically reduce the cost of hydrogen logistics and infrastructure, so you can enjoy the benefits of green hydrogen energy with less input.

Multi-Layered Security Design
Highlight 5

Multi-Layered Security Design

Built-in patented electrolysis technology and safety system to comprehensively reduce the risk of explosion and leakage, so that the hydrogen production process is safe and meets the highest safety standards.

Intelligent Control System
Highlight 6

Intelligent Control System

With intelligent monitoring and automated management, users can easily monitor the status of hydrogen production, grasp real-time operating data, and improve operational convenience. From industrial processes and medical devices to hydrogen vehicles, H2RENEW™ integrates flexibly into key solutions for multi-industry energy transitions.

SKYRE H2RENEW™ Product Specifications

Performance
Maximum hydrogen recovery (SCFH, 70°F, 1 atm): 1760
Maximum hydrogen recovery (kg/day): 100
Maximum hydrogen recovery (Nm³/h, 0°C, 1 bar): 46
Maximum hydrogen recovery (slm, 70°F, 1 atm): 830
Hydrogen purity: 99.9999%
Product moisture content: 1 ppm
Product dew point: -76°C (-105°F)
Inlet pressure: 0–1 psig
Product outlet pressure: 0–150 psig
Maximum hydrogen recovery rate: 95%
Typical hydrogen recovery rate: >80%
System availability: >90%
Controls & Data
Control interface: HMI display
Data communication: Ethernet
Supported protocols: Modbus/TCP
Remote monitoring: Available
Status alarms: Supported
Data logging: Supported
Safety protections: Included
Interconnections
Hydrogen inlet fitting: 1/4” male
Hydrogen outlet fitting: 1/4” male
Cooling water connections: 1/2” or 3/4” piping
Drain connection: 1/4”
Power input connection: Three-phase AC terminal
Communication interface: RJ45 (Ethernet)
Installation Requirements
Installation type: Cabinet-style
Installation location: Well-ventilated area
Minimum service clearance: ≥ 1 meter (front)
Noise level: < 75 dB(A)
Enclosure material: Industrial-grade metal
Cooling method: Water-cooled
Auxiliary requirements: External cooling water supply
Environmental Conditions
Operating temperature: 15–40°C
Storage temperature: -20–50°C
Operating humidity: 5–95% RH (non-condensing)
Maximum operating altitude: 2000 m
Environmental requirement: No corrosive gases
Ingress protection rating: NEMA 1 / IP20
Electrical
Input power: 480 VAC (three-phase)
Frequency: 60 Hz
Rated power consumption: 10 kW
Maximum power consumption: 12 kW
Wiring configuration: L1 / L2 / L3 / G
Power quality requirement: Total harmonic distortion < 5%
Breaker requirement: According to system current rating
Dimensions & Weight
Dimensions (L × W × H): 897 × 762 × 1788 mm
System weight: Approx. 500 kg
Installation form: Cabinet
Footprint area: 0.68 m²
Pumping / piping area: Integrated inside cabinet
